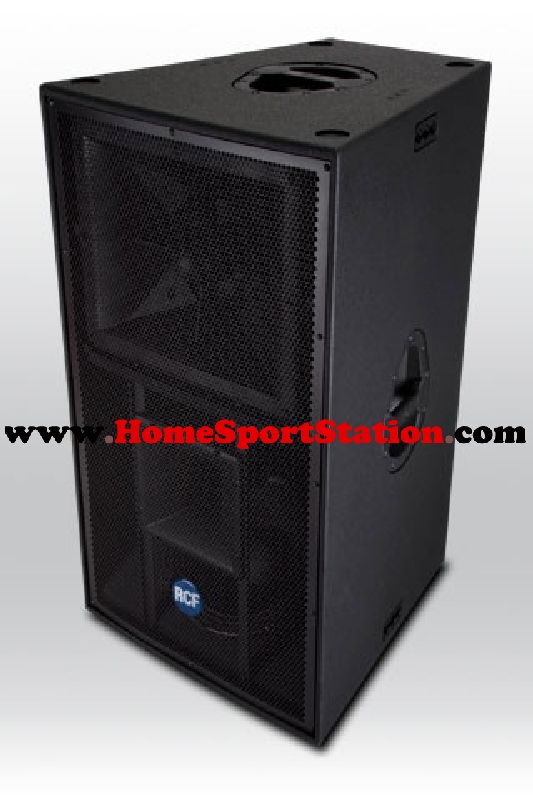

RCF 4PRO 6001-A Active Three-Way Speaker

Applications

    • Main PA for mid size venues
    • Band & vocal PA
    • Professional DJ applications
    • Night clubs
    • Corporate events

Part Number

    • 13000007 (230V)
    • 13000040 (115V)

Features
    - 950 Watt tri-amplification
    - 134 dB max spl
    - 80 x 60, Wide dispersion constant directivity ho
    - 2x12" woofer, high power neodymium 3" v.c.
    - 8" midrange, high power neodymium 3" v.c.
    - 1" HF driver, titanium dome, neodymium 1.75" v.c.

Acoustical Specifications
    - Frequency Response -3 dB: 50 Hz ÷ 20 kHz
    - Max SPL: 134 dB
    - Horizontal coverage angle: 80°
    - Vertical coverage angle: 60°
    - Compression Driver: 1" neo, 1.75" voice coil
    - Midrange: 8" neo,3" voice coil
    - Woofer: 2 x 12" neo, 3" voice coil

Input/Output Section
    - Input signal: bal / unbal
    - Input connectors: Combo xlr-jck
    - Output connectors: xlr
    - Input sensitivity: 0 dBu

Processor Section
    - Crossover frequencies: 360 Hz / 2000 Hz
    - Protections: uC protection
    - Limiter: Fast limiter
    - Controls: Volume

Amplifier Specifications
    - Total power: 950 W
    - High frequencies: 50 W
    - Mid frequencies: 300 W
    - Low frequencies: 600 W
    - Cooling: Forced
    - Connections: Powercon in / out

Cabinet
    - Cabinet Material: Baltic birch
    - Hardware: 5 x fly tracks
    - Handles: 2 side, 1 top
    - Colour: Black

Physical Specifications
    - Height: 920 / 36.22 mm/inch
    - Width: 525 / 20.67 mm/inch
    - Depth: 550 / 21.65 mm/inch
    - Net Weight: 55 / 121.25 kg/lbs
