Jabiru 3300cc Aircraft Engine
Price:
$9,840.00
Brand:
Condition:
New
Rating:
Availability:
In Stock
Shipping:
Calculated at checkout
Product Description

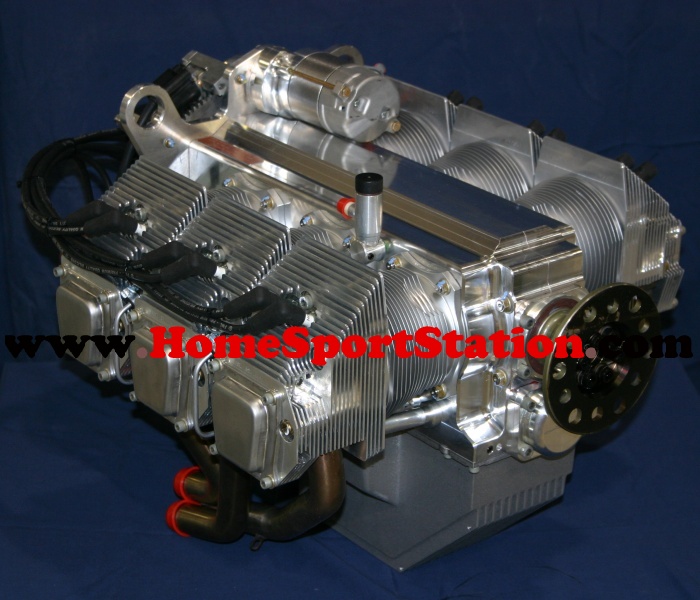

JABIRU 3300CC AIRCRAFT ENGINE
The Jabiru 3300cc Aircraft Engine is a 6-cylinder 4-stroke horizontally opposed air cooled engine.
Overall dimensions are extremely small. It's 596mm (23.46") width allows tractor applications with very small frontal areas. The Jabiru engine is designed for either tractor or pusher installation.
At 81kg installed weight the Jabiru 3300 Aircraft Engine is an ideal replacement for the 100-120 hp equivalent which power many of the existing "experimental" aircraft. It is an engine designed by aircraft designers for aircraft applications!
ENGINE FEATURES
- 4 Stroke
- 3300cc (200 cubic inches)
- 6 Cylinder Horizontally Opposed
- 1 Central Camshaft
- Fully Machined Aluminium Alloy Crankcase
- Over Head Valves (OHV) - Push Rod Operated
- Ram Air Cooled
- Wet Sump Lubrication - 4 litre capacity
- Direct Propeller Drive
- Dual Transistorised Magneto Ignition
- Integrated AC Generator
- Electric Starter
- Mechanical Fuel Pump
- Naturally Aspirated - 1 Pressure Compensating Carburetor
SPECIFICATIONS
Aircraft Engine | Jabiru 3300cc 120hp |
| Displacement | 3300 cc (200 cu in) |
| Bore | 97.5 mm |
| Stroke | 74 mm |
| Compression Ratio | 8:1 |
| Directional Rotation of Prop Shaft | Clockwise - Pilot's view Tractor applications |
| Ramp Weight | 83.5 kg (184 lbs) complete including exhaust,carburetor, starter motor, alteator and ignition system |
| Ignition Timing | 25? BTDC |
| Firing order | 1 - 4 - 5 - 2 - 3 - 6 |
| Power Rating | 120 hp @ 3300 rpm continuous |
| Fuel Consumption at 75% power* | 26 l/hr (6.87 US gal/hr) |
| Fuel | AVGAS 100/130 or MOGAS - must be above 95 OCTANE RON |
| Oil | Aeroshell 15W50 or equivalent |
| Oil Capacity | 3.5 ltr (3.69 quarts) |
| Spark Plugs | NGK D9EA - Automotive |
Warranty Information
30 Days After Purchase Order
