CX20 Quadcopter 4 AXIS FPV 4CH 2.4GHz Drone Aircraft Helicopter Remote Control

  • www.HomeSportStation.com
Price:
$240.00
Brand:
Condition:
New
Rating:
( )
Availability:
In Stock
Shipping:
Calculated at checkout
Quantity:


Product Description

CX20 Quadcopter 4 AXIS FPV 4CH 2.4GHz Drone Aircraft Helicopter Remote Control

  • Basic parameters:
  • Aircraft size:280mm x 140mm
  • Motor Specifications:2122
  • Aircraft weight:980g
  • Electric current:20A
  • Receiver:RX703A
  • Remote Control:F7(2.4G)
  • Battery:11.1v/2700mah
  • Flying Time: about 15min
  • Charging Time: About 6 hours
  • GPS aircraft: DEVO-M
  • Remote distance:500M
  • Figure transmission distance:500M
  • Flight load:300g
  • Brushless PTZ:G-2D
  • Operation temperature:-10°C - 50°C
  • Flight Control System Power:3.12W
  • Maximum tilt angle:45°
  • Maximum lifting speed:±6m/s
  • Maximum flight speed:10m/s
  • Charger and Battery parameters:
  • Charger input voltage range:100-240V
  • Current output:0.8A
  • Current input:11.1-125.5v=5A
  • Battery compatible:7.4v/11.1v
  • Battery type:Lipo
  • Balance charge:500mA

  • Remote control parameters:
  • Operating Frequency:2.4GHz DSSS
  • Channel:4CH
  • Output Power:≤10mW
  • Current consumption:≤230ma(100mW/H)
  • Output pulse:1000-2000ms(Neutral point 1500)
  • Sensitivity:-105dbm
  • Remote distance:500M
  • Figure transmission distance:500M
  • Transmit Power:20dBm
  • Operating current / voltage:52mA@6V
  • RC size:27.5cm x 18cm
  • Build-in 4pcs AA battery


    Feature:
  • Headless flight mode
    When the aircraft beyond the range of visibility and you can not disce the head and tail, you can choose headless mode.
  • Fixed Spot mode
    You can through GPS positioning technology make the aircraft stay in a fixed point in the air,positioning accuracy can reach centimeter level.
  • One-key Retu to Home
  • Low voltage waing system

 width=

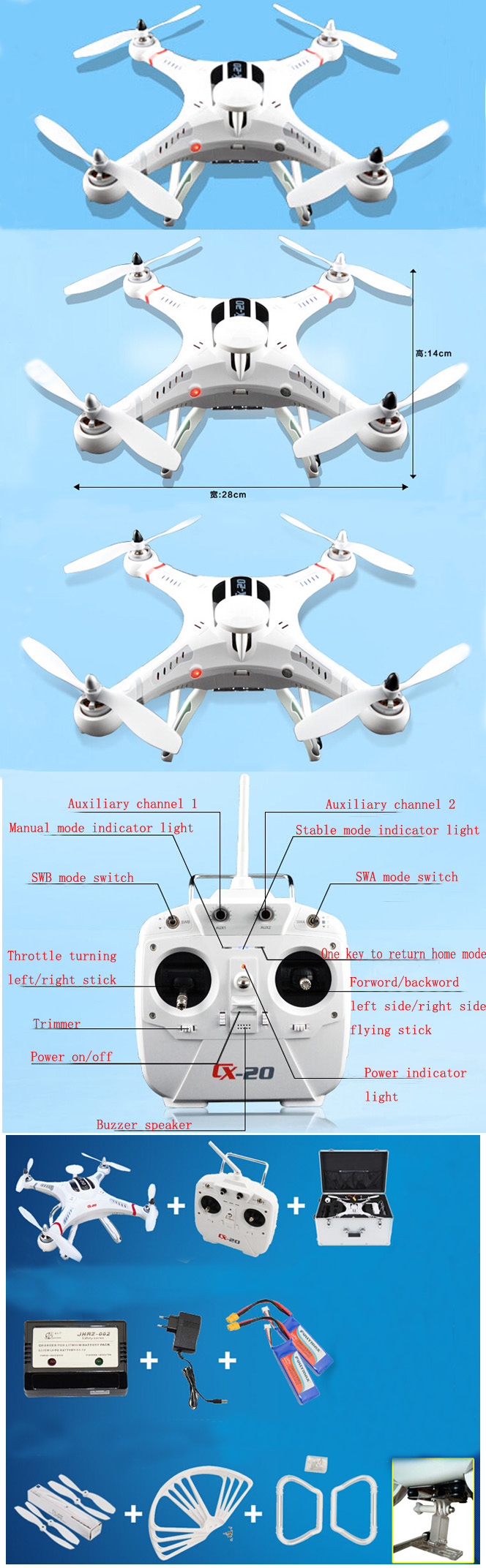

What in Package:

1 x CX-20 Quadcopter
1 x Remote control (Right stick throttle)
1 x Aluminum Box
2 x 2700ma battery
1 x charger
2 x Spare Propellers Blades
1 x Blades protected bracket
2 x landing bracket
1 x 1D PTZ
1 x User Manual


Warranty Information

30 Days After Purchase Order
